Truck & Bus > wash Machines > Bus Wash - 4PX

bus wash machine - 4PX

A quick system for washing medium to large bus fleets. With top performance,the 4PX can wash a 12-metre vehicle in less than 2 minutes, (with overlapping brush wash on the front and back).

A drive-thru wash system, designed for washing large fleets. The working principle is a static machine occupying a very small space, (from 4 metres long) and which does not need rails. It can wash vehicles regardless of length.

An easy and clear positioning system and communication with the driver via traffic lights, means the clean on the front and back is more effective since these operations are carried out with the vehicle stopped.

Recent Projects

Hunter Valley Buses, Toronto NSW - Read more >>

Download Brochure

Heavy Vehicle Washing Systems

Bus wash Machine - 4PX features:

  • Galvanised steel structure
  • Traffic light to regulate access
  • Anti-splash screens
  • Roof wash brush (optional)
  • Vertical auxiliary brushes
  • Control and command unit mounted inside a watertight cabinet, containing a PLC, electrics for the power circuit and service counter.

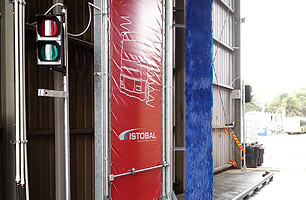

bus wash machine

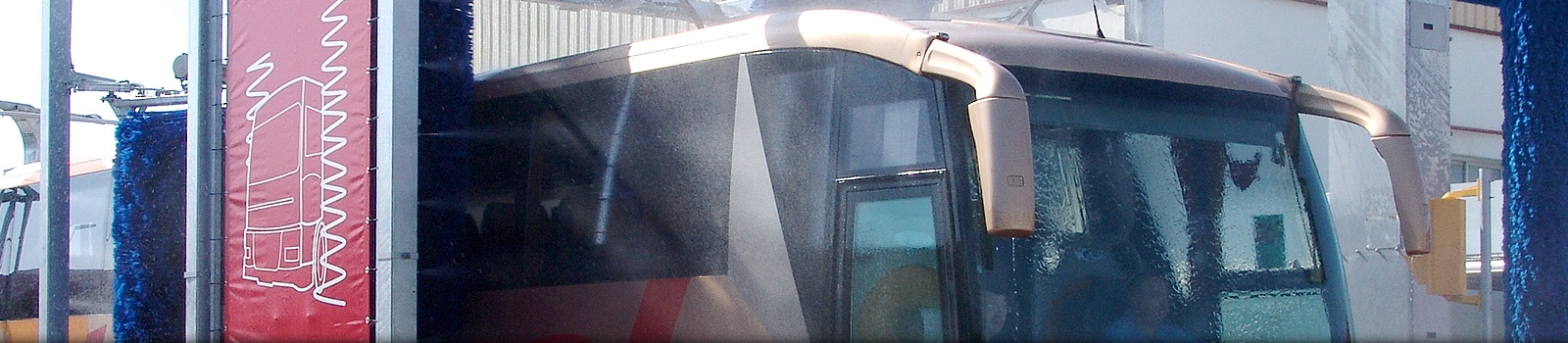

4PX bus wash machine with pre-soak, shampoo and final rinse arches with optional inclusion of wax

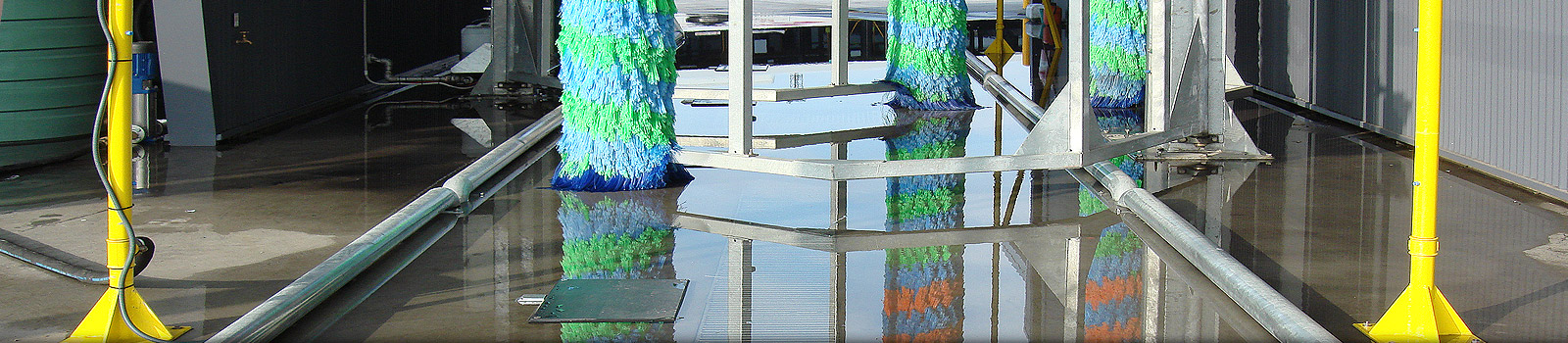

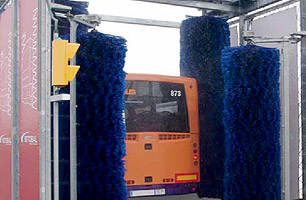

Ubus wash machine with under chassis wash

Under chassis wash can be added to any wash machine as an optional extra if required

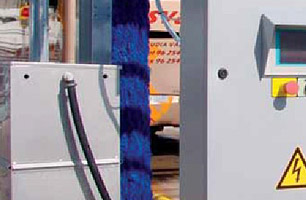

Control Station with message screen in a watertight cabinet

Control Station with message screen in a watertight cabinet to ensure electricals are safe

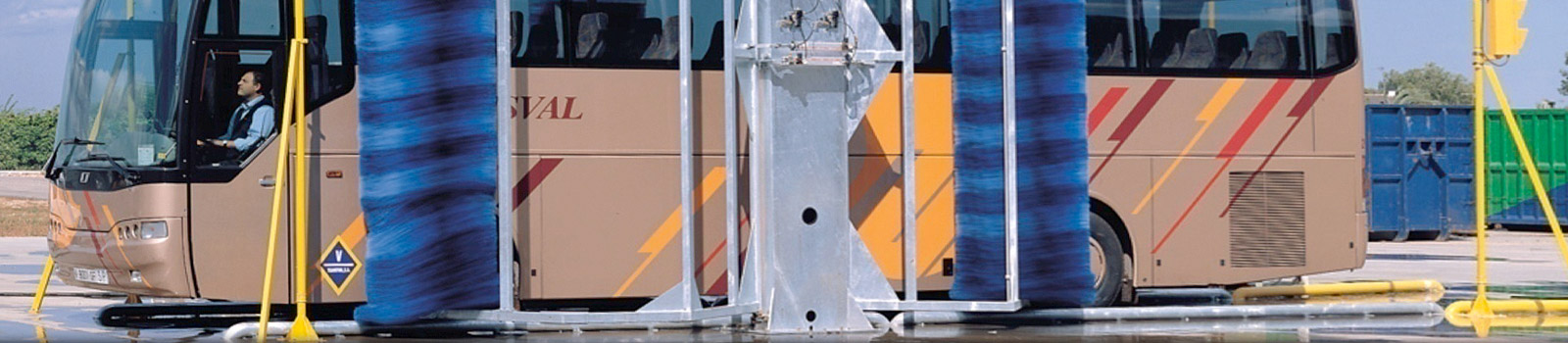

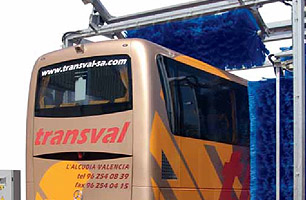

The 4PX bus wash machine at halfway through wash cycle showing optional horizontal wash brush

Technical Specifications - bus wash 4PX1200

RANGE MODEL

4PX1200 Bus Wash

Brush Type

Two mobile vertical brushes

# of Brushes

2

Maximum Vehicle Height

4.5m

Maximum Vehicle Width

2.9m

Washing up

4.5m

Minimum Bay Size

5.30m (h) x 5.84m (w) x 4m (l)

Efficiency

30

Power

5.2kw/h

Water Consumption

230 litres/min

Technical Specifications - bus wash 4PX

RANGE MODEL

4075500

4075600

4075700

Brush Type

Two mobile vertical brushes 3.5m

Roof brush 4.5m

Two mobile vertical brushes 3.5m + one roof 45m

# of Brushes

4

3

5

Maximum Vehicle Height

4.5m

4.5m

4.5m

Maximum Vehicle Width

2.9m

2.9m

2.9m

Washing up

4.5m

4.5m max / 3.8m min

4.5m max / 3.8m min

Minimum Bay Size

5.74m (h) x 5.84m (w) x 6m (l)

5.74m (h) x 5.84m (w) x 6m (l)

5.74m (h) x 5.84m (w) x 6m (l)

Efficiency

30

30

30

Power

8.5kw/h

8.5kw/h

8.5kw/h

Water Consumption

244 litres/min

243 litres/min

257 litres/min

RANGE MODEL

4373300

4373400

4373500

Brush Type

Two mobile vertical brushes 3.5m

Roof brush 4.5m

Two mobile vertical brushes 3.5m + one roof 45m

# of Brushes

4

3

5

Maximum Vehicle Height

4.5m

3.6m

3.6m

Maximum Vehicle Width

2.9m

2.9m

2.9m

Washing up

4.5m

4.5m max / 3.8m min

4.5m max / 3.8m min

Minimum Bay Size

5.74m (h) x 5.84m (w) x 6m (l)

5.74m (h) x 5.84m (w) x 6m (l)

4.5m max / 3.8m min

Efficiency

30

30

30

Power

8.5kw/h

8.5kw/h

8.5kw/h

Water Consumption

244 litres/min

243 litres/min

257 litres/min
