Oil & Grease Pump Features:

  • Durable
  • Fewer repairs
  • Extended seal life
  • Reduced downtime
  • Superior sealing
  • Reduced Icing
  • Corrosion resistant

oil & grease pumps

Graco pumps are built to last. With so many innovative maintenance-saving features, Graco pumps reduce downtime and save you money. No matter what fluid you're pumping Graco has a quality solution for your low, medium or high volume application.

Fire-ball Oil & grease pumps

Designed for the toughest applications, the Graco Fire-ball pumps have been a mainstay in the lubrication marketplace for durability and long life. The Fire-Ball repeatedly out performs and out lasts the competition.

Recent Projects include:

Project Name / Short Description

Fire-ball 300

Ideal for medium sized shops with high pressure grease dispense and oil transfer. Available in 5:1 for oil and15:1 or 50:1 for grease

Fire-ball 300 Ideal for medium sized shops with high pressure grease dispense and oil transfer

Fire-ball 425

The pump of choice for the most demanding high volume applications. Available in 3:1, 6:1, 10:1 for oil & 10:1, 50:1, 75:1 for grease

Fire-ball 425 The pump of choice for the most demanding high volume applications

Mini Fire-ball 225

Perfect for medium pressure, for use in small workshops with low volume applications. Available in 3:1 for oil and 50:1 for grease

Mini Fire-ball 225 Perfect for medium pressure, for use in small workshops with low volume applications

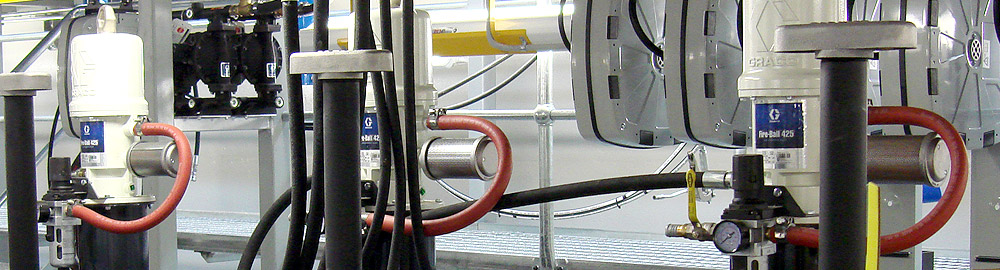

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines in Auto workshop

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines in Auto workshop

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines

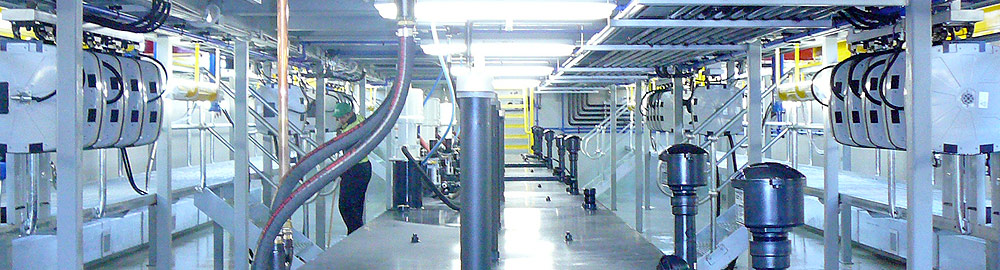

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines in auto workshop

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines in auto workshop

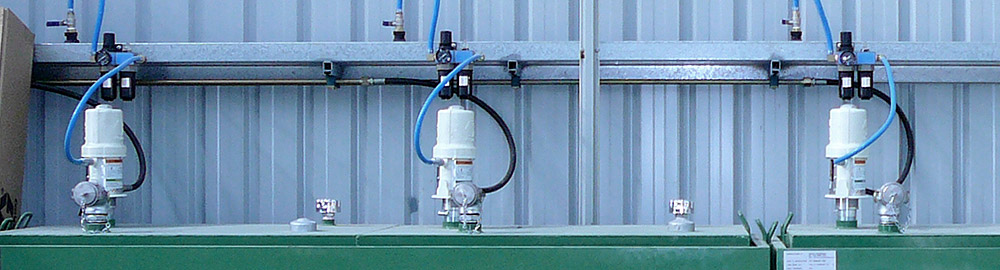

Lubrication tanks outside automotive workshop showing pumps feeding into main high pressure lines

Lubrication tanks outside automotive workshop showing pumps feeding into main high pressure lines

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines

Oil and grease pumps connected to main lubrication supply tanks and high pressure lines



Technical Specifications

Model

Fireball 300 Pump

Maximum fluid working pressure

900 psi

Fluid Pressure Ratio

5:1

Air pressure operating range

40 to 180 psi

Maximum air consumption

13 ft3/min for first gpm pumped at 100 psi, up to 8 additional ft3/min for each additional gpm with pump operated within recommended range

Pump cycles per gallon (liters)

30 per gal

Recommended speed for optimum pump life

70 cycles per min

Sound pressure level (measured at 1 m from unit)

77.8 dB(A)Sound

Sound power level (tested in accordance with ISO 9614–2)

85.6 dB(A)

Approximate Weight

17 lb

Model

Fireball 425 Pump

Maximum fluid working pressure

1100psi

Fluid Pressure Ratio

6:1

Air pressure operating range

40 to 180 psi

Air consumption

7ft3/minpergallonpumped, (0.051 m3/min per liter pumped) at 100 psi (7 bar, 0.7 MPa)

Pump cycles per gallon (liters)

14.5 per gal

Recommended speed for optimum pump life

78 cycles per min

Sound pressure level (measured at 1 m from unit)

79.5 dB(A)Sound

Approximate Weight

35 lb

Model

Mini Fireball 225 Pump

Maximum fluid working pressure

1100psi

Fluid Pressure Ratio

6:1

Air pressure operating range

40 to 180 psi

Air consumption

7ft3/minpergallonpumped, (0.051 m3/min per liter pumped) at 100 psi (7 bar, 0.7 MPa)

Pump cycles per gallon (liters)

14.5 per gal

Recommended speed for optimum pump life

78 cycles per min

Sound pressure level (measured at 1 m from unit)

79.5 dB(A)Sound

Approximate Weight

35 lb
